Testing a Workflow

This guide provides a step-by-step approach to testing a workflow in the Kompass Admin UI. It helps users validate workflow logic, debug issues, and ensure correct data flow across components before deploying to production.

---

Technical Overview

In Workflow Weaver, workflows can be tested using two methods, each serving a different purpose:

1. Test Mode (Builder-Level Execution)

• Executes the workflow directly within the builder
• Useful for validating node execution and debugging logic
• Provides visibility into intermediate outputs of each component
• Ideal for developers during workflow construction

2. Playground Mode (Simulation-Based Testing)

• Simulates real-world execution using user inputs
• Provides a chat-based interface for testing workflows
• Helps validate end-to-end behavior and response quality
• Includes trace-level debugging for deeper analysis

---

Method 1: Testing via Test Mode

Step 1

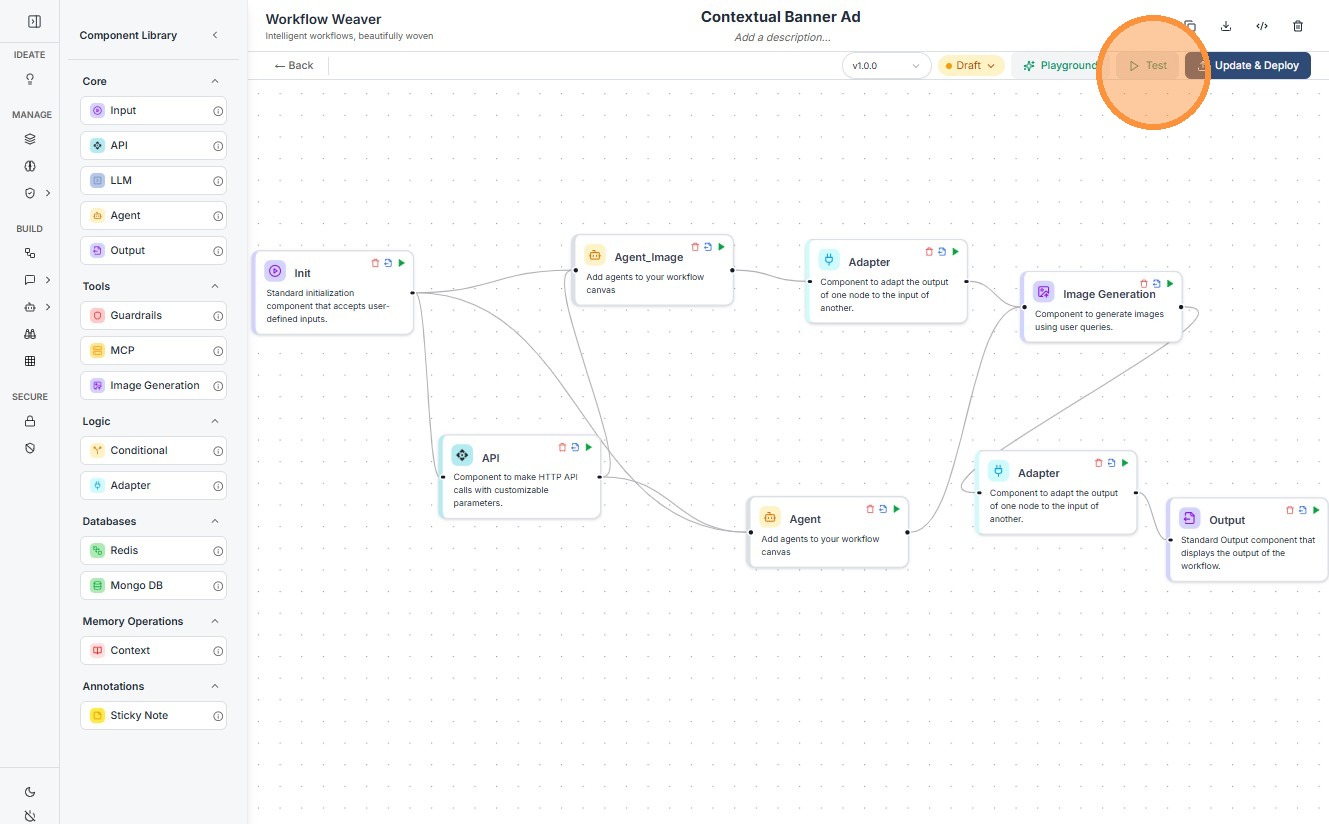

Click "Test"

---

Step 2

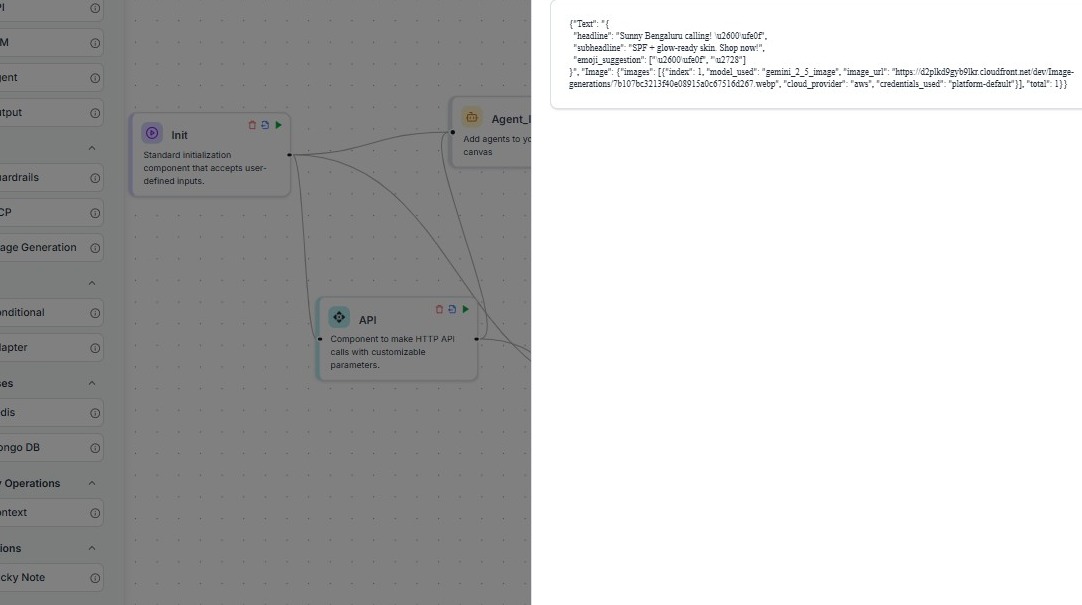

Output of the Workflow

---

Step 3

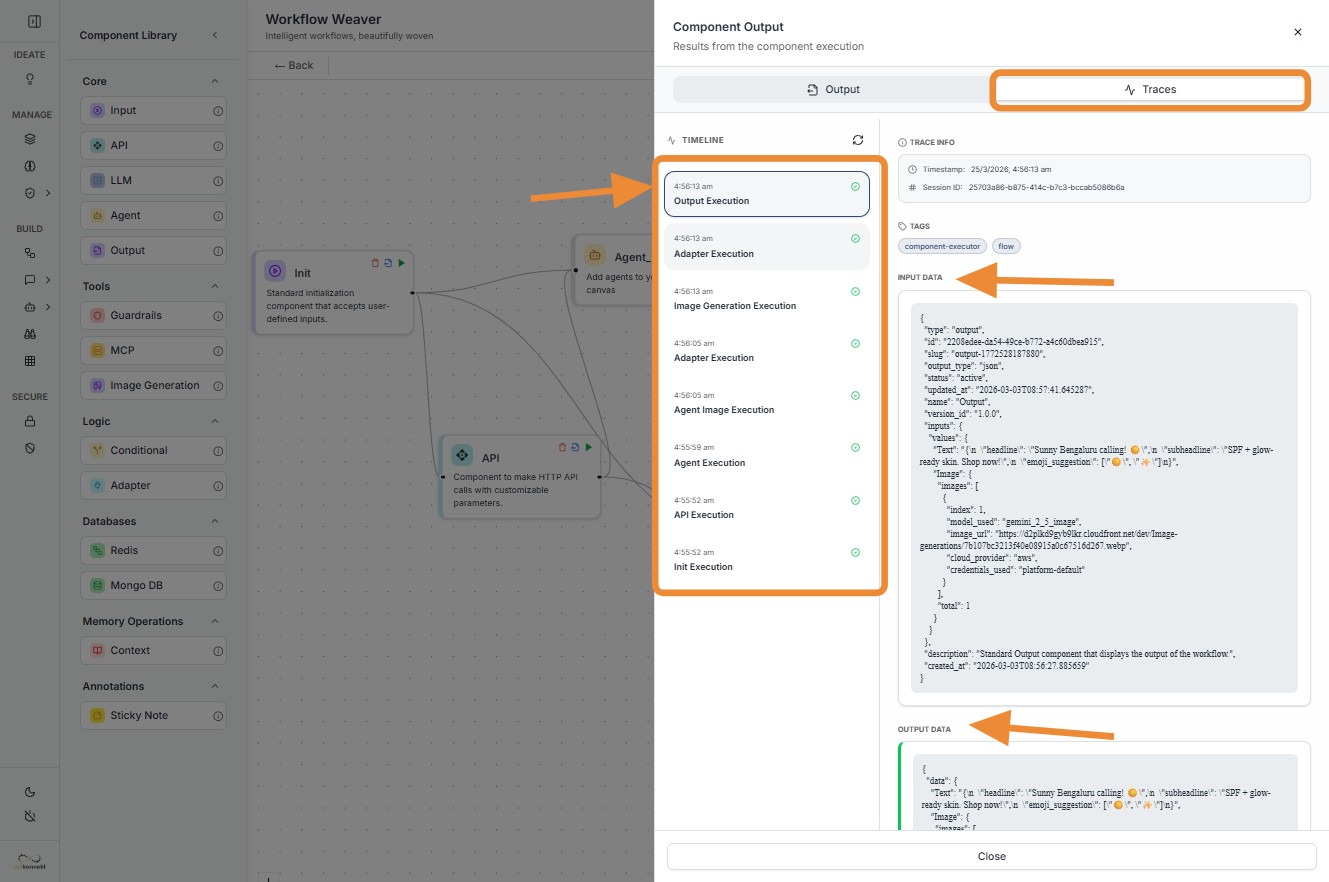

Click "Adapter Execution" (timestamped execution log)

---

Step 4

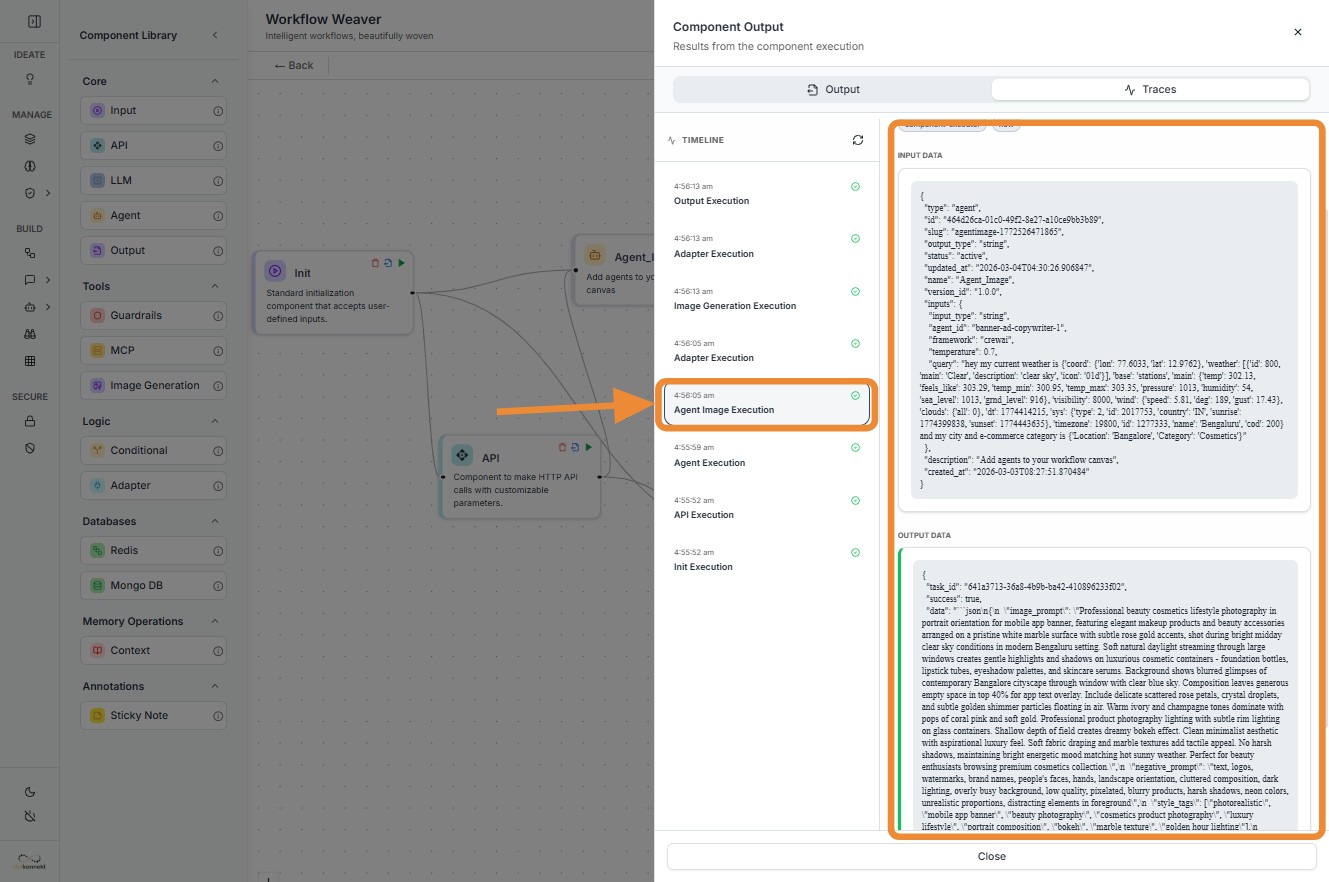

You can check output of any component by simply clicking on that component.

---

Method 2: Testing via Playground

Step 5

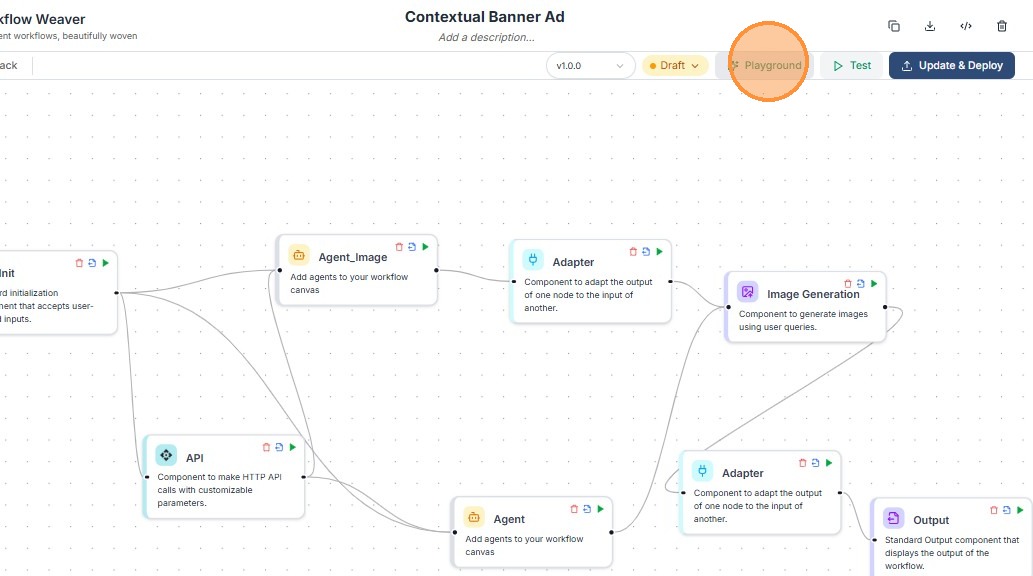

Second way is testing through Playground

---

Step 6

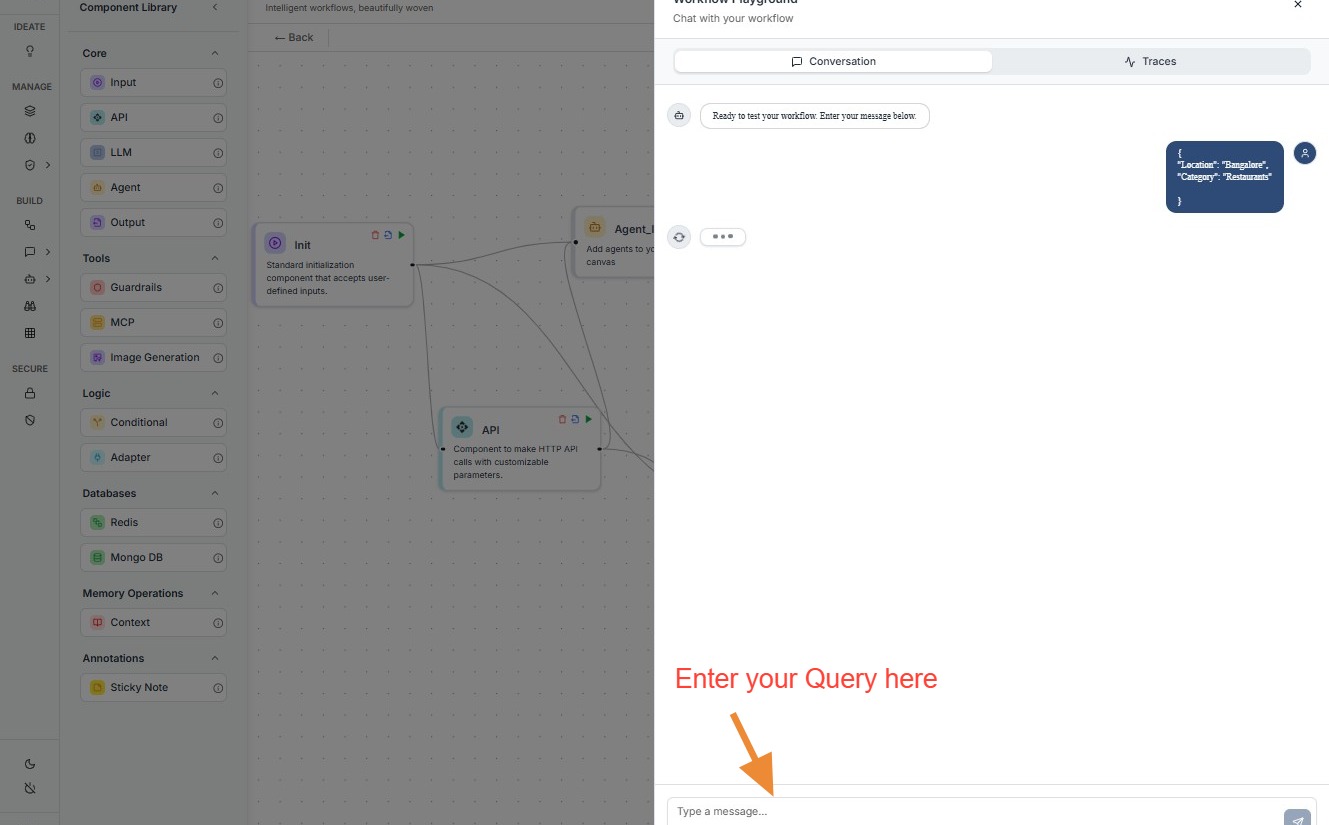

Type your query and press Enter

---

Step 7

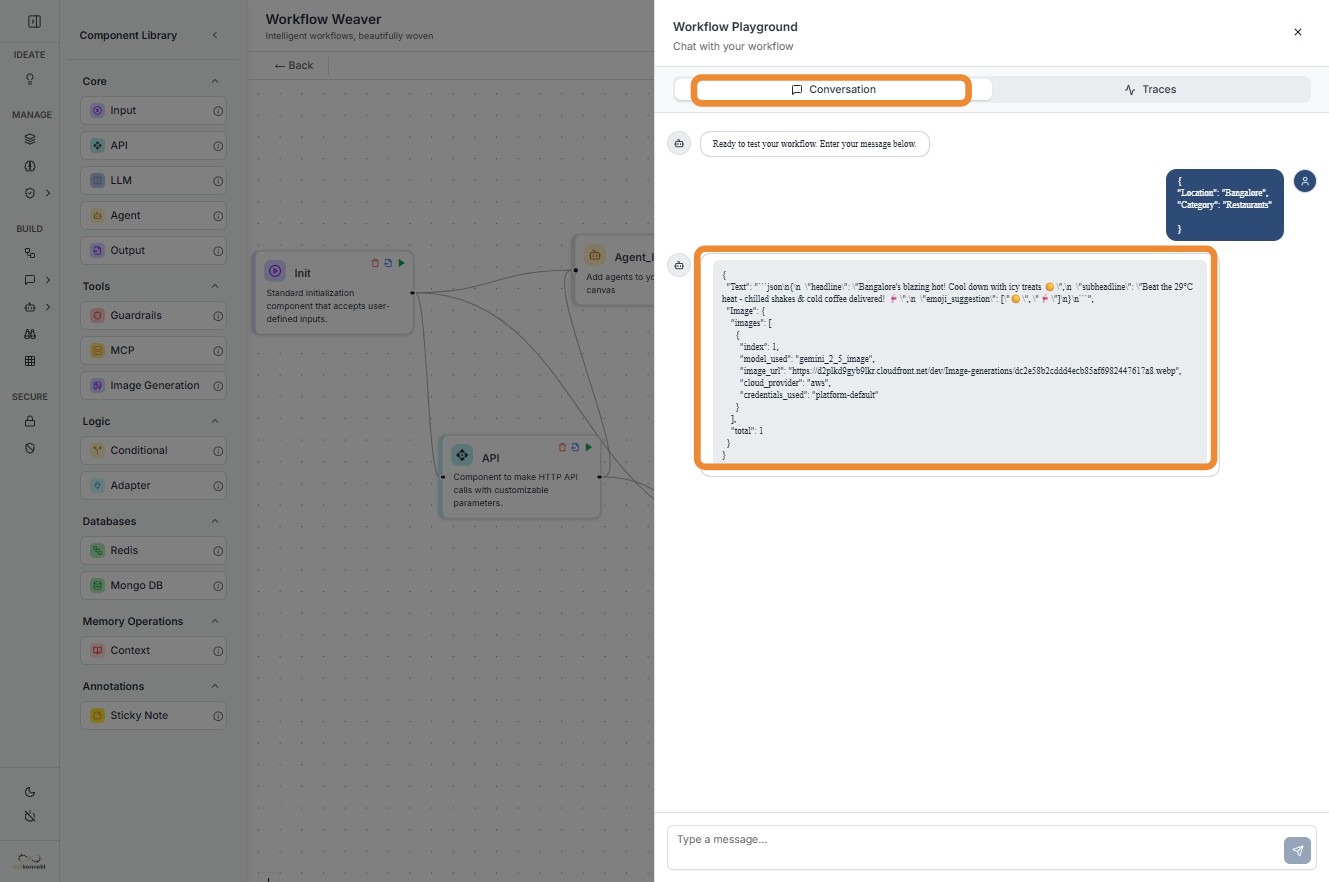

Output in chat

---

Step 8

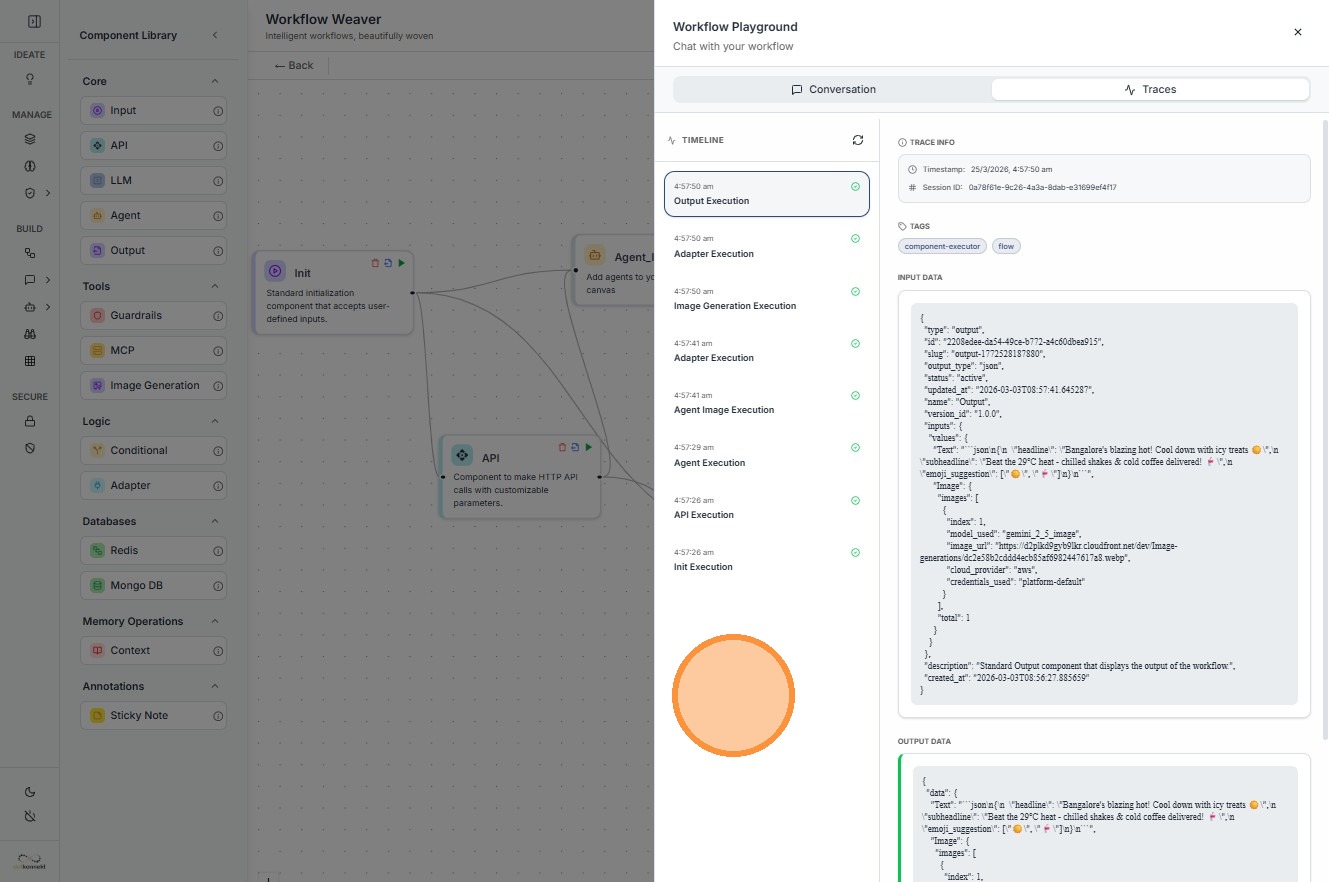

Click "Traces" to check workflow execution traces

---

Step 9

Input and output data of every component will be shown here

---

When to Use What

Mode	Use Case
Test Mode	Debugging node logic, validating intermediate outputs
Playground	End-to-end testing, simulating real user queries

---
